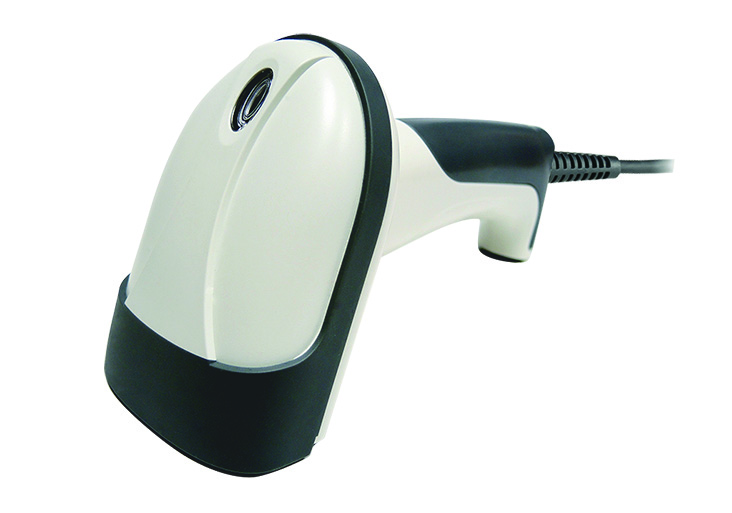

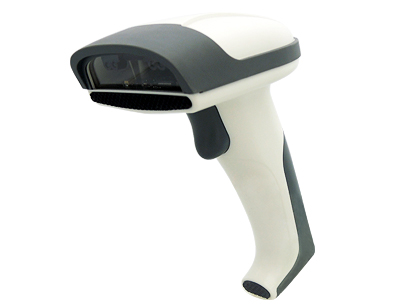

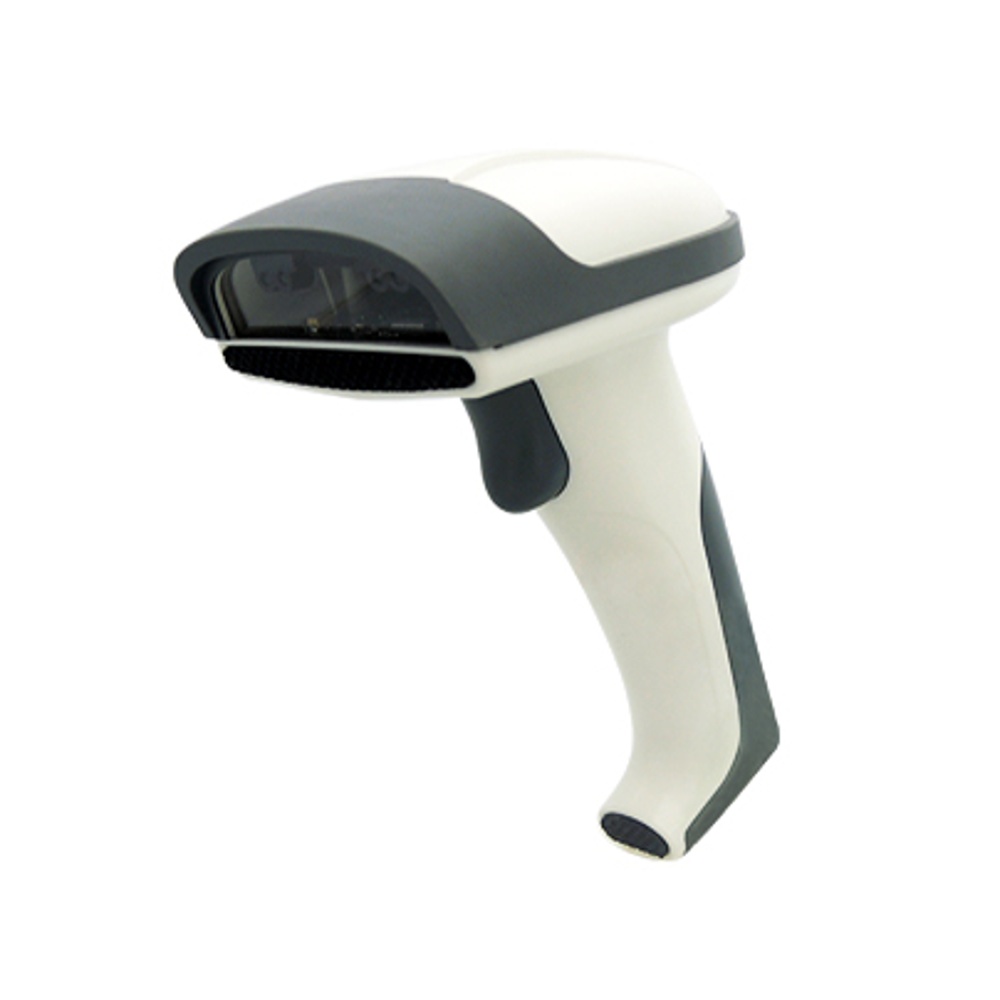

AS8200 Handheld 2D Reader

The AS8200 is a 2D handheld scanner which decodes major 2D barcodes as well as all major 1D barcodes. It is designed to achieve the efficient and affordable barcode scanning solution. This cost-effective, reliable handheld scanner is an ideal choice for a variety of applications, including ticketing, access control, mobile payment and manufacturing.
Fast 1D and 2D Barode Data Capture
AS8200, on an average of 1/10 seconds, scans all linear barcodes and major 2D barcodes printed on labels with either matte or glossy surface, or displayed on mobile phone or LCD screen. AS8200 2D handheld scanner also delivers superior scanning in any orientation, which benefits enterprise with less downtime and increased productivity.

Ambient Light Immunity
AS8200 2D handheld scanner automatically adjusts its parameters for optimal scanning performance which provides the freedom to scan barcodes from under complete darkness to direct sunlight. As a result the AS8200 2D handheld scanner is ideal for both indoors and outdoors scanning applications which require more immunity for ambient light.

Mobile-Friendly Scanning
AS8200, with enhanced optical design and latest decode algorithm, virtually scans all 1D barcodes and major 2D barcodes on any surface, either paper-based label or mobile phone display. With AS8200 AS8200 2D handheld scanner adopted as barcode scanning device, users may expand their business into many new applications such as eCoupon, eTicket, Digital ID cards and mobile payments.


Better User Experience
As classified by Photo-biological Safety Standard EN/IEC 62471, the light source of AS8200 2D handheld scanner is completely safe for human eyes even after long hours operation.

Industrial-class Protection
The ruggedized design of AS8200 2D handheld scanner includes industrial-class protection with a rubber bezel in the front and 1.5 meters drop resistance which ensure that AS8200 withstand the impact of everyday drops and bumps and prevent the scanner window from any damage or scratch in all kinds of working environments.
Optical & Performance
Light Source
 White LED
Aimer Red LED dot aimer

Sensor Area Image Sensor
Scan Rate
10 Frames/Sec
Resolution
5mil
Scan Angle
Horizontal 34°
Print Contrast
30%
Width of Field
97mm (13Mil Code39)
D.O.F
(Environment:800lux)
Code39
5 Mil : 25 ~ 81 mm
20 Mil : 58 ~ 355 mm

UPC/EAN
13 Mil : 40 ~ 230 mm

QR Code
15 Mil : 11 ~ 159 mm

Data Matrix
10 Mil : 22 ~ 75 mm

PDF417
6.67 Mil : 28 ~ 96 mm
Physical Characteristics
Dimension L166 x W71 x H84 mm
Weight 172g
Color Black & Gray
Material ABS
Cable 2.1M (Fixed Cable)
Trigger Scan Button
Indicator LED, Buzzer
Power
Operation Voltage 5 VDC ± 5%
Working Current < 220mA
Standby Current < 60mA
Power
Operation Voltage 5 VDC ± 5%
Working Current < 190mA
Standby Current < 50mA
User Environment
Operating Temperature -10 ~ 40˚C
Storage Temperature -20 ~ 65˚C
Humidity 0%~95%RH (Non-condensing)
Drop Durability 1.5 M
Ambient Light TBD
1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 128, Code32, Code 39, Interleaved 2 of 5, MSI Plessey Code, EAN/GS1-128, GS1 Databar
2D Symbologies QR Code, Data Matrix, PDF 417
Regulatory
EMC FCC Part 15B Class B, CE EN55024/32
ESD Functional after 4KV contact, 8KV Air discharge
Safety EN/IEC62471
Environmental WEEE, RoHS 2.0
Description Notes Date Download
MT7955TA VCP Driver   Dec 28, 2014 Download Now
MT7955TA Configuration Utility 4.0.2   Nov 20, 2015 nextlink
MT7955TA Complete User Manual   Nov 20, 2015 nextlink
