Arkscan MT7955TA reads barcode on displays and screens instantly; it's a powerful device, especially in the mobile world, that allow to scan barcode confirmation number, coupon barcode or other on a mobile phone, instead of printing the barcode on a piece of paper. It reads color barcode on PCS 10%, and comprises no moving part.
Arkscan MT7955TA's on-screen barcode readability catches the trend of mobile barcode applications
MT7955TA High-Density barcode scanner is a multi-functional barcode scanner designed to fulfill the growing demand of on-screen barcode scanning, which traditional Laser barcode scanner can never achieve. Integrated with an optimized optical sensor, MT7955TA handheld barcode scanner is capable of scanning any mobile barcode on the screen of smartphones and tablets.
For applications such as entertainment and travel industries, where mobile-ticketing and mobile-coupon are becoming prevalent and the customer simply presents the barcode displayed on a mobile phone to be scanned on arrival, MT7955TA's aggressive on-screen barcode scanning performance can make staffing more efficient, simplifying and speeding up the customer experience.
MT7955TA High-Density barcode scanner tends to be one of the best accessories in Retail Management and AIDC applications.
- High Density CCD Sensor –< a solid firmware portfolio with unique decoding algorithm
- High Sensitive Infrared Sensor – detect the target object under any kinds of situation
- Vibrating Indicator – notifies user while operating in both quiet and noisy environment
MT7955TA High-Density barcode scanner is a multi-functional barcode scanner designed to fulfill the growing demand of on-screen barcode scanning, which traditional Laser barcode scanner can never achieve. Integrated with an optimized optical sensor, MT7955TA handheld barcode scanner is capable of scanning any mobile barcode on the screen of smartphones and tablets.
For applications such as entertainment and travel industries, where mobile-ticketing and mobile-coupon are becoming prevalent and the customer simply presents the barcode displayed on a mobile phone to be scanned on arrival, MT7955TA's aggressive on-screen barcode scanning performance can make staffing more efficient, simplifying and speeding up the customer experience.
MT7955TA High-Density barcode scanner tends to be one of the best accessories in Retail Management and AIDC applications.
- High Density CCD Sensor –< a solid firmware portfolio with unique decoding algorithm
- High Sensitive Infrared Sensor – detect the target object under any kinds of situation
- Vibrating Indicator – notifies user while operating in both quiet and noisy environment
Versatile Functionality
Read barcode on displays / screens in additional to regular printed barcode.
Safe For Your Eyes
Class 1 laser (Laser Classifications of EN60825 & ANSI Laser Safety Standard / ANSI Z136) of scanner is the safest for eyes and skin in this class. Despite, the other laser scanners are mainly class 2 laser classifications which raise high risk damage for eyes.
Excellent Optical Performance
Effortlessly read colorful barcode by alternatively active tri-color supplementary LED lights, and perform colorful barcode decoding in terms of PCS 10%. It encourages a convenience in various scanning applications.
Very Durable
Durable Integrated Construction, tested with withstands multiple 1.8M/6FT drops to concrete floor; protected by 3 years limited warranty.
Ergonomic Design
Ergonomic Green Design, comfortable handheld & 40% less power to operate the device than regular laser scanner.
Read barcode on displays / screens in additional to regular printed barcode.
Safe For Your Eyes
Class 1 laser (Laser Classifications of EN60825 & ANSI Laser Safety Standard / ANSI Z136) of scanner is the safest for eyes and skin in this class. Despite, the other laser scanners are mainly class 2 laser classifications which raise high risk damage for eyes.
Excellent Optical Performance
Effortlessly read colorful barcode by alternatively active tri-color supplementary LED lights, and perform colorful barcode decoding in terms of PCS 10%. It encourages a convenience in various scanning applications.
Very Durable
Durable Integrated Construction, tested with withstands multiple 1.8M/6FT drops to concrete floor; protected by 3 years limited warranty.
Ergonomic Design
Ergonomic Green Design, comfortable handheld & 40% less power to operate the device than regular laser scanner.
| Optical & Performance | |
|
Light Source
|
630nm visible red LED 525nm visible green LED
|
| Aimer | 650nm visible red laser
|
| Sensor | 2048 pixels CCD Sensor |
|
Scan Rate
|
200 scans/ sec |
|
Resolution
|
3mil/ 0.075mm |
|
Scan Angle
|
40° |
|
Print Contrast
|
30% |
|
Width of Field
|
166mm (13Mil Code39) |
|
D.O.F
(Environment:800lux) |
4 Mil Code39: 25 ~ 110mm 5 Mil Code39: 15 ~ 120mm 10 Mil Code39: 0 ~ 280mm 15 Mil Code39: 0 ~ 350mm 13 Mil UPC/ EAN: 0~290mm |
| Physical Characteristics | |
| Dimension | W71×L166×H84 mm |
| Weight | 146g±5g |
| Color | Gray |
| Material | ABS+TPR |
| Cable | 2.1m |
| Trigger | Scan Button |
| Indicator | buzzer, LED, Vibrator |
| Power | |
| Operation Voltage | 5 VDC ± 5% |
| Working Current | < 220mA |
| Standby Current | < 60mA |
| Power | |
| Operation Voltage | 5 VDC ± 5% |
| Working Current | < 220mA |
| Standby Current | < 60mA |
| User Environment | |
| Operating Temperature | 0~40°C |
| Storage Temperature | -10~60°C |
| Humidity | 0%~85%RH (Non-condensing) |
| Drop Durability | 1.8M |
| Ambient Light | 10,000 Lux (Fluorescent Light) |
| 1D Symbologies | UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar |
| Regulatory | |
| EMC | CE, FCC part15, Class B |
| ESD | Functional after 4KV contact, 8KV Air discharge |
| Safety | RoHS 2.0, WEEE, IEC 60825-1 |
| Description | Notes | Date | Download |
| MT7955TA VCP Driver | Dec 28, 2014 |  |
|
| MT7955TA Configuration Utility 4.0.2 | Nov 20, 2015 | |
|
| MT7955TA Complete User Manual | Nov 20, 2015 | |

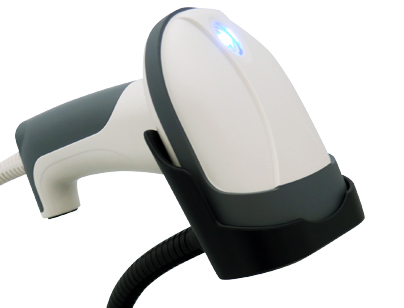

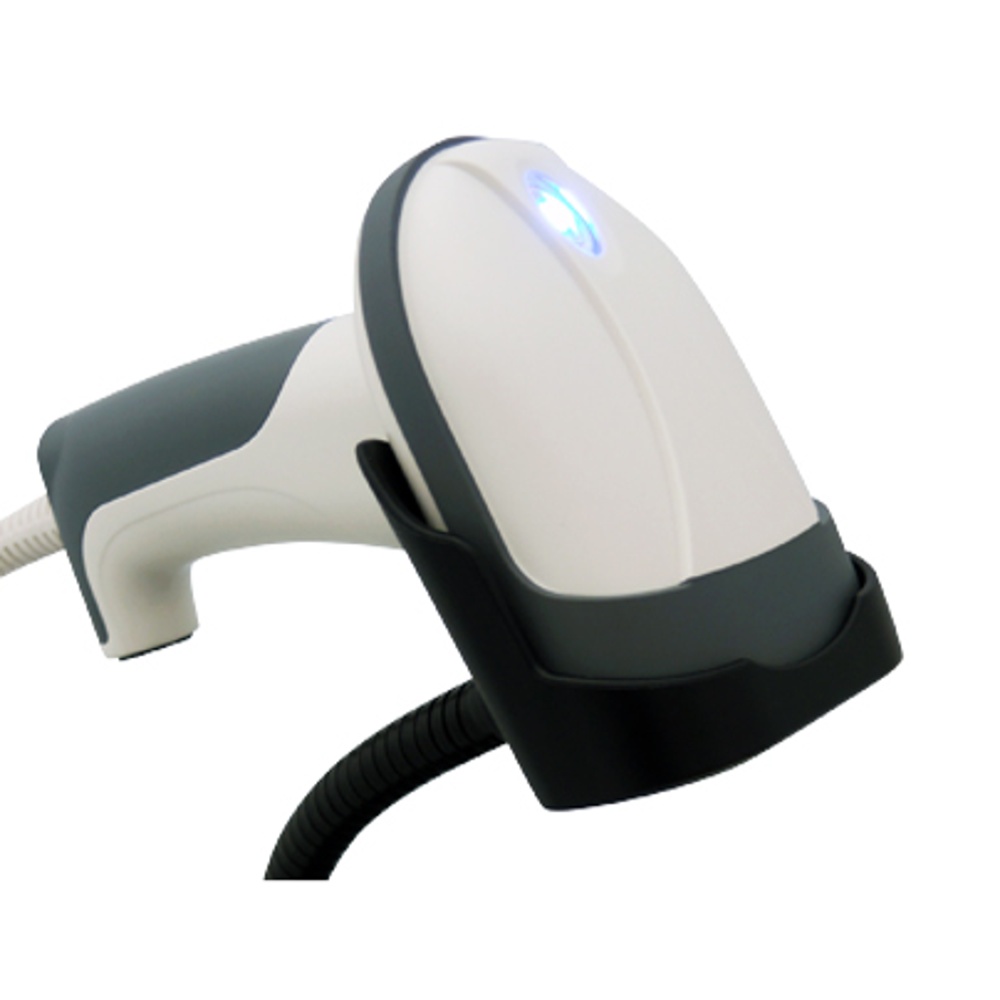

MT709 goose neck metal barcode scanner stand with auto magnetic switch for MT7955TA series scanners:
