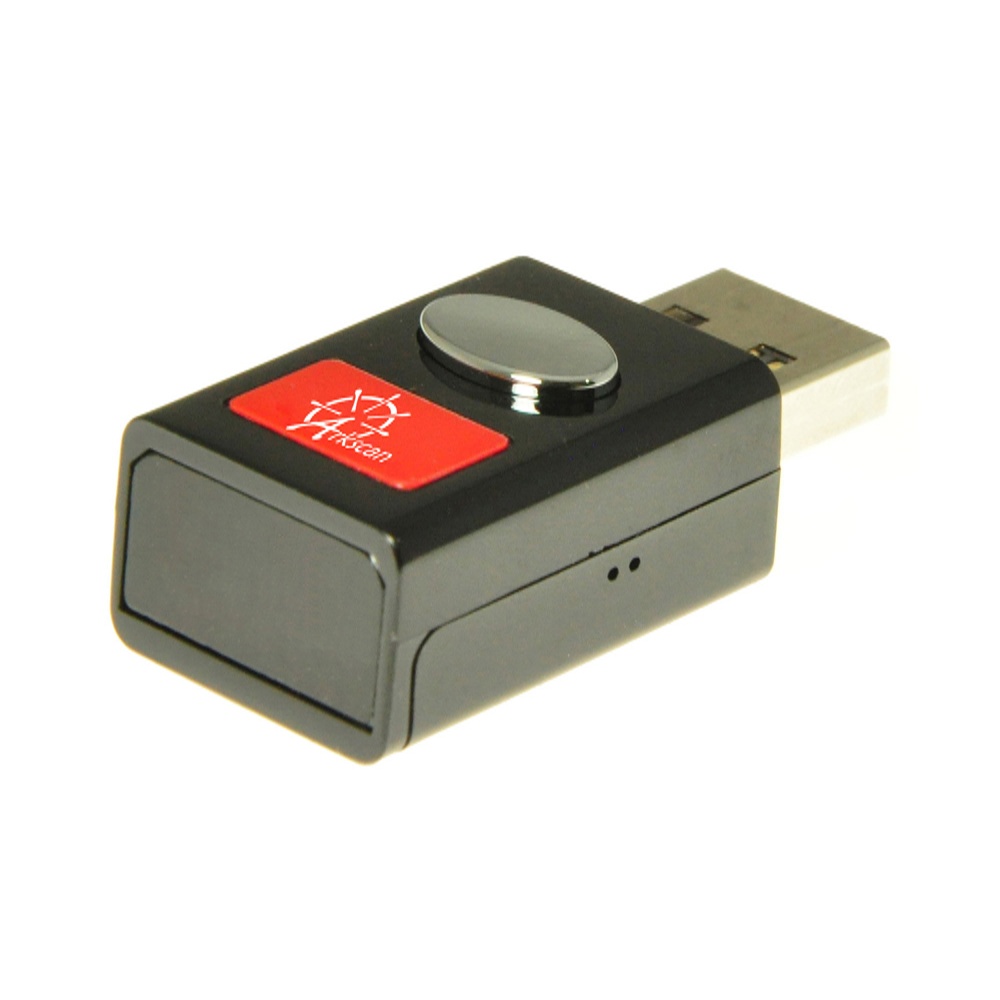

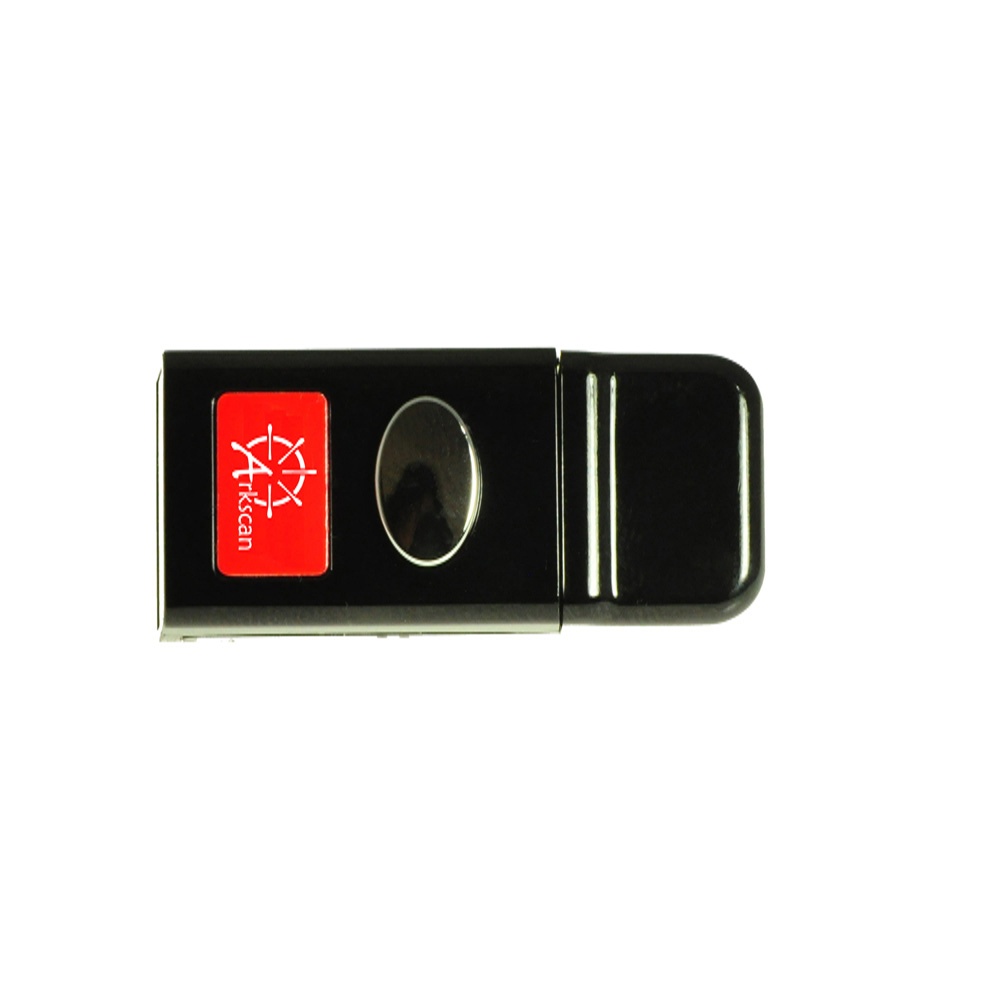

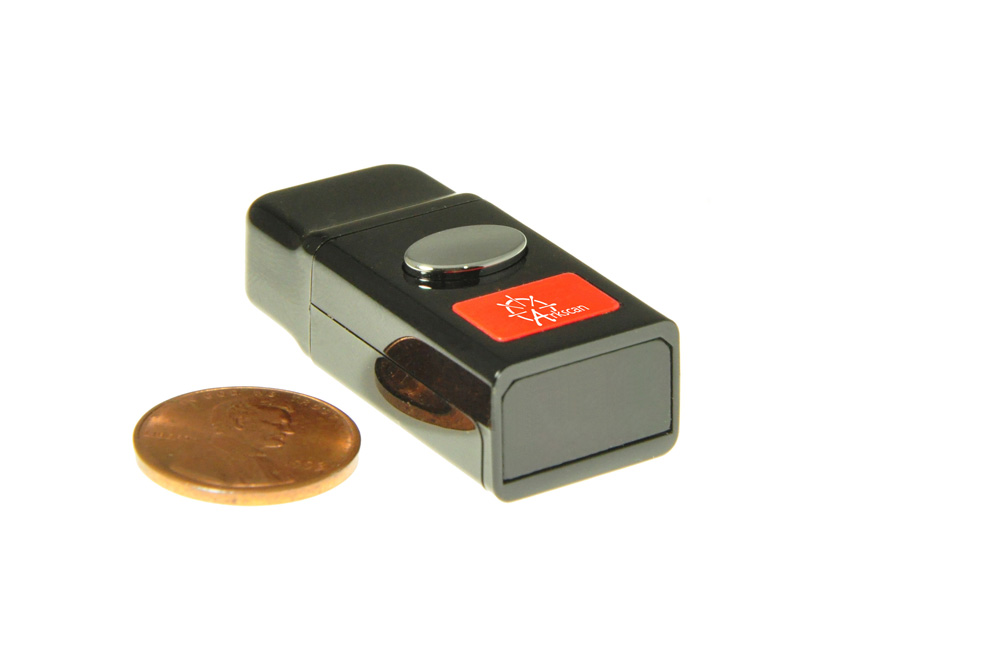

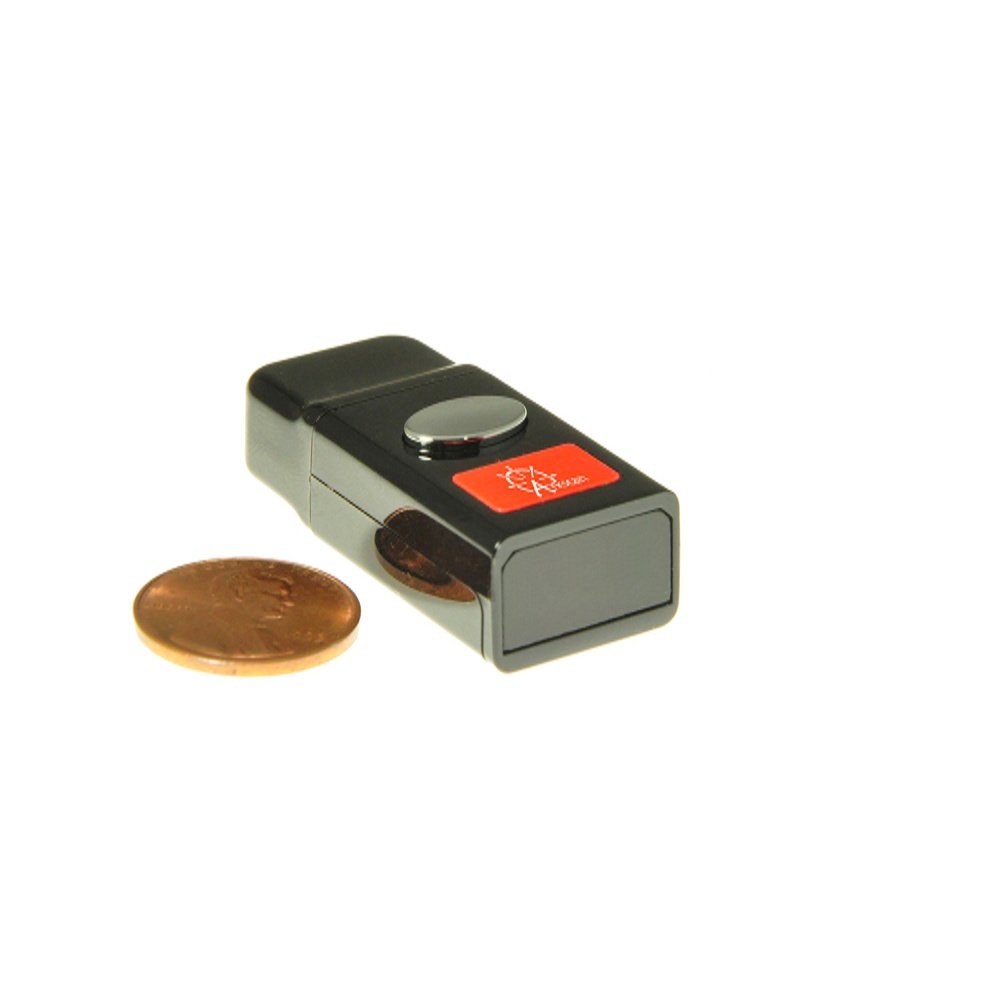

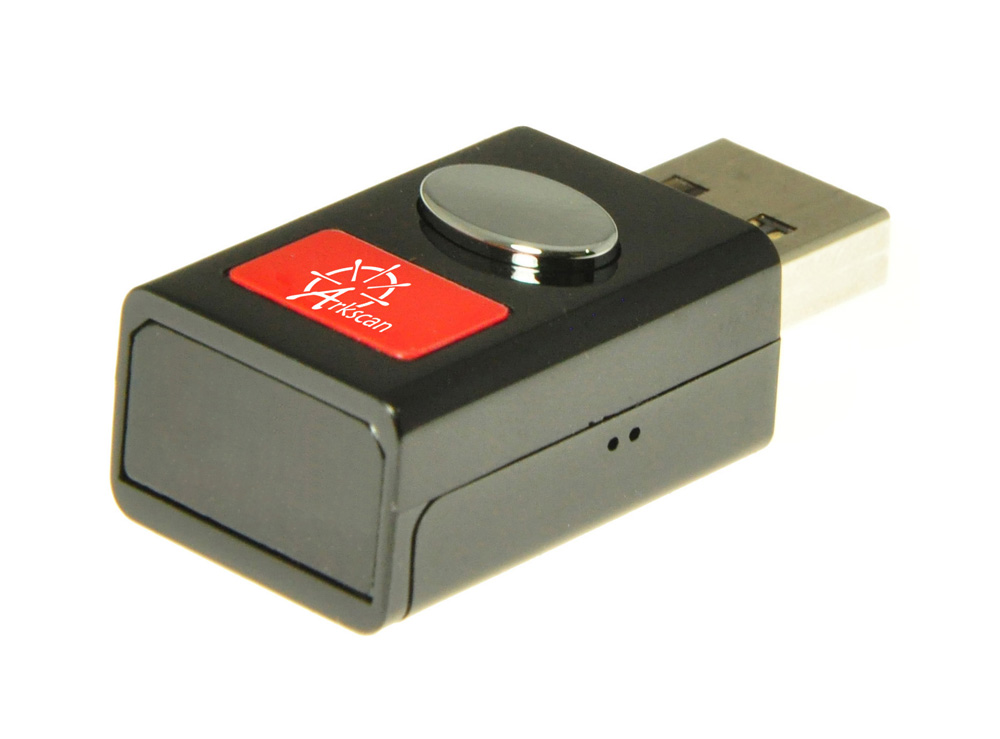

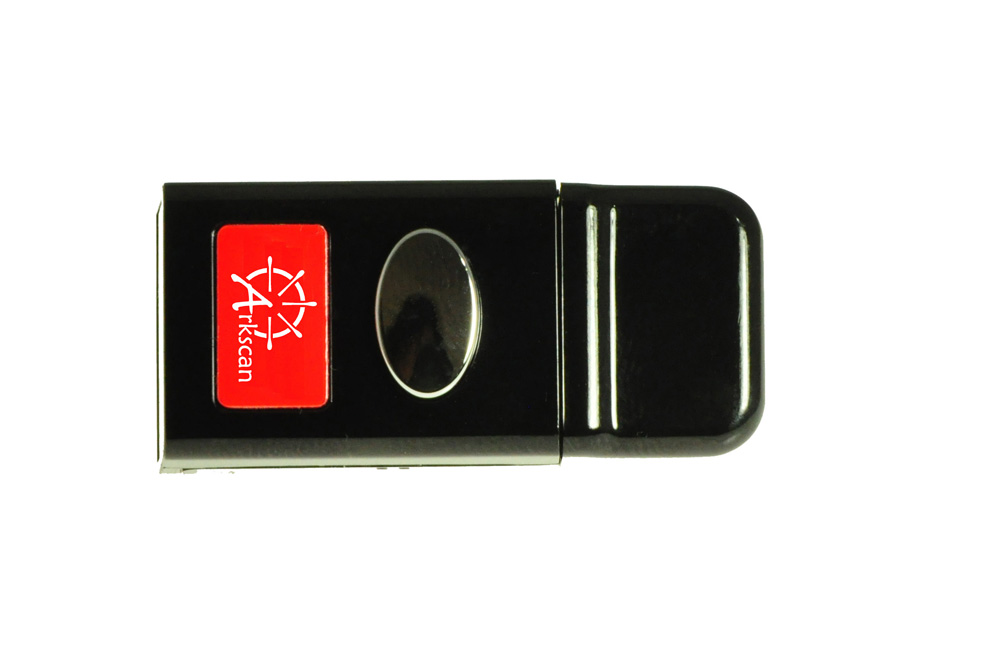

AS700 Plug & Play USB Dongle for Arkscan's Bluetooth Barcode Scanner

Arkscan AS700 USB Dongle for Bluetooth barcode scanners, it enables existing host device with one-to-many Bluetooth connectivity, AS700 wireless dongle can work with up to 7 wireless barcode/RFID readers simultaneously, and requires no driver for installation. AS700 wireless dongle increases the efficiency of your mobile scanning application.

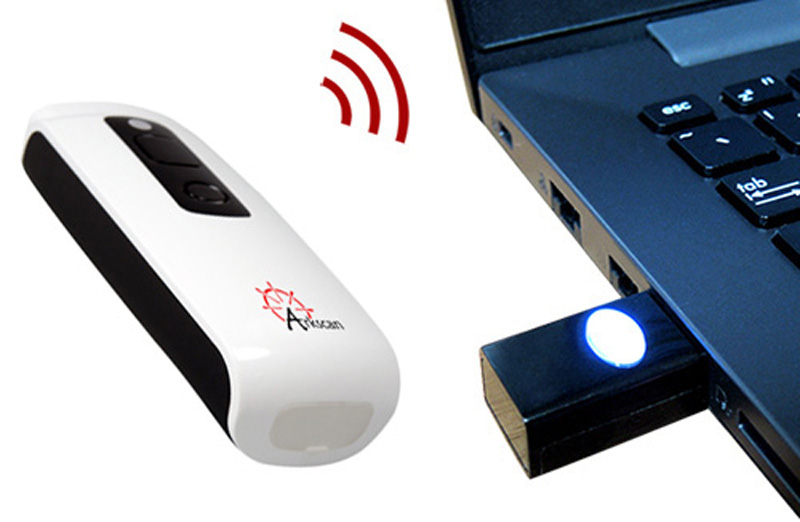

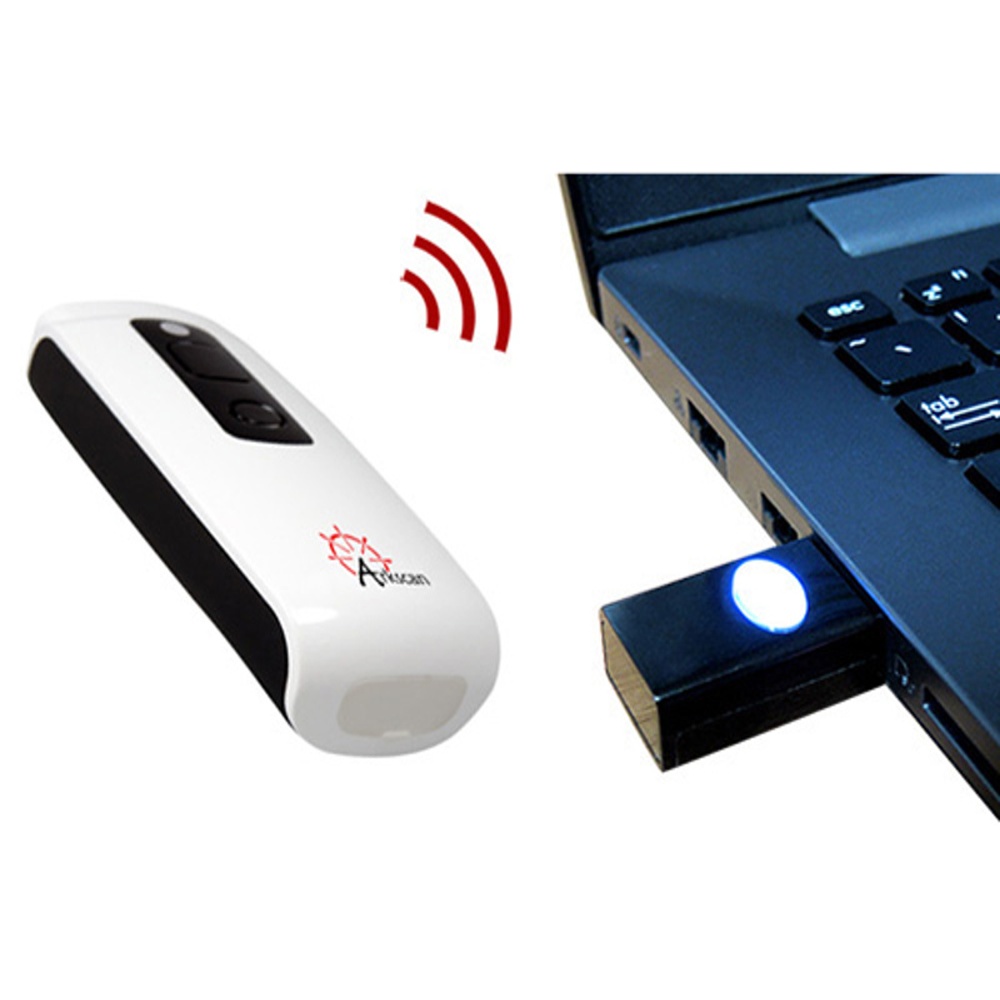

The wireless USB dongle AS700 enables your existing non-Bluetooth host device with one-to-many wireless connectivity through USB interface. It is compatible with all Arkscan’s wireless products including wireless barcode scanner and RFID readers.

In mobile scanning tasks such as access control, AS700 wireless dongle plays an important role in collecting data from multiple input devices to a shared host device. Designed to have easy operation, the installation of AS700 wireless dongle is only a matter of plug and play; it also takes only one scan at the MAC address barcode to pair with AS700 wireless dongle. Therefore, even entry-level users with no special training can handle the whole operation of AS700 wireless dongle.

AS700 wireless dongle works as a USB keyboard device, making it compatible among PCs of Mac, Android, and Windows systems.

AS700 wireless dongle features ScanLink, with which scanners could establish wireless connection with the dongle by ONE simple scan at the MAC address barcode. No driver or any complicated setup operation is needed.

AS700 wireless dongle is capable of connecting up to 7 wireless barcode/RFID readers at the same time.

Due to the checksum verification and handshaking mechanism during communication, the quality and integrity of data transmission is greatly secured and the risk of data loss is eliminated when barcode/tag data is transferred from barcode/RFID readers to the AS700 wireless dongle.

Supports all Arkscan's bluetooth barcode scanners and wireless bluetooth NFC reader,
List of the compatible barcode scanner devices

AS10 RFID Reader Bluetooth & USB



  1. Convert Arkscan bluetooth barcode scanners to USB plug and play interface; after the USB dongle is paired with a scanner, don't need to pair it again, just simply plug into any USB device then it can be scanned barcodes wirelessly.
  2. Enabling your existing host device with one-to-many Bluetooth connectivity, AS700 wireless dongle can work with up to 7 wireless barcode/RFID readers simultaneously, and requires no driver for installation.
  3. AS700 wireless dongle works as a USB HID keyboard device , making it compatible among PCs of Mac, Android, and Windows systems.
  4. Enabling data integrity for a scenario of pairing more than one scanner. (Without this USB dongle, for two scanners reading two barcodes simultaneously by pairing two scanners to host device directly, the scanner#1 can be interrupted by scanner #2, and causes scanner#1 reading incomplete or wrong barcode)
  5. Support Arkscan bleutooth barcode scanners only, includes model ES301, AS10, AS307, AS307A, ES311 & AS312 ONLY.
Physical Characteristics
Dimension W19 x L41.8 x H21.5 mm
Weight 7.6g
Color Black
Material PC
Cable USB A(F) to USB A(M) Cable, 1.8M
Indicator LED

Power
Operation Voltage 5 VDC ± 5%
Working Current < 50mA
Standby Current < 50mA

Connectivity
Radio Bluetooth 2.1 + EDR (Class2)
Range 30 ft./ 10M (line of sight)
Interface/ Profile USB HID
Number of Device Connected Up to 7 Concurrent Devices

User Environment
Operating Temperature 0 ~ 50˚C
Storage Temperature -20 ~ 65˚C
Humidity 0% ~ 95%RH (Non-condensing)
Drop Durability 1.5M

Regulatory
EMC FCC  Part 15B Class B, Part 15C
CE EN55022/24, EN300328 V1.8.1, EN301489-1-17, EN62311
ESD Functional after 4KV contact, 8KV air discharge
Safety Approval EN/IEC 60950-1
Environmental WEEE, RoHS 2.0

Out Of Box
Cable USB A(F) to USB A(M) Cable, 1.8M, Black
(P/N: 7005-9297A50, QTY: 1)
Description Notes Date Download
AS700 Quick Guide   Dec 1, 2015 Download Now
Manufacturer's Original Price: $125

Promotion Price

$75.00 each
+
Add to cart
If you are a reseller or distributor, please contact us for pricing by clicking here.
