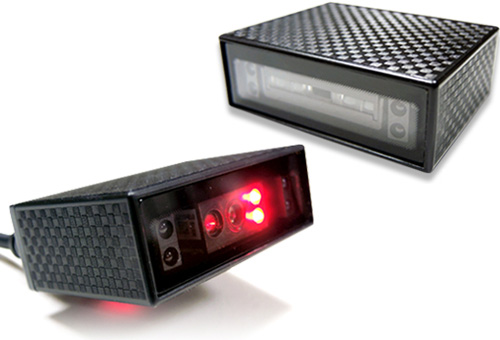

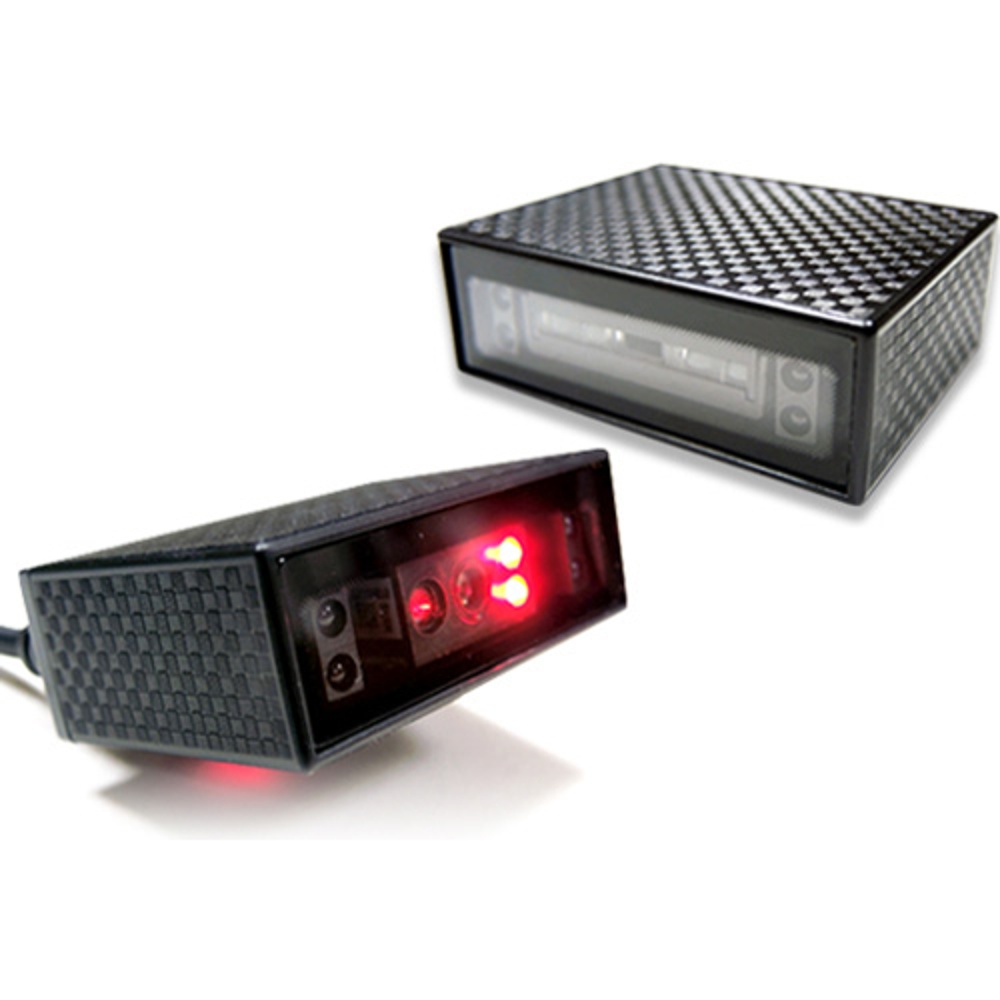

AS601U 1D Auto Sensing Fixed Barcode Scanner

Arkscan's AS601 Fixed Mount Barcode Scanner for General Purpose and Industrial Applications. This is an autosensing, hands free, 1D USB barcode scanner for kiosk systems. Supports Android OTG, Windows and more.

AS601 is designed to have 1.5-meter drop durability and IP55-rated dust/water resistance, the ruggedized housing of AS601 linear fixed mount barcode scanner guarantees the best performance in the toughest working environment throughout all applications.
With two mounting bracket available, AS601 linear fixed mount barcode scanner is capable of being mounted in various positions including straight, tilted, and right-angled direction, making it possible to fit into the most tightest space, preventing equipment re-design.
With built-in sensitive infrared sensors, AS601 linear fixed mount barcode scanner can automatically detect any incoming object toward the scanner in any lighting condition, providing great efficiency in every barcode scanning task.

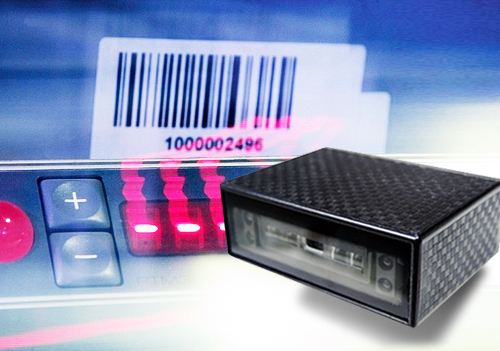

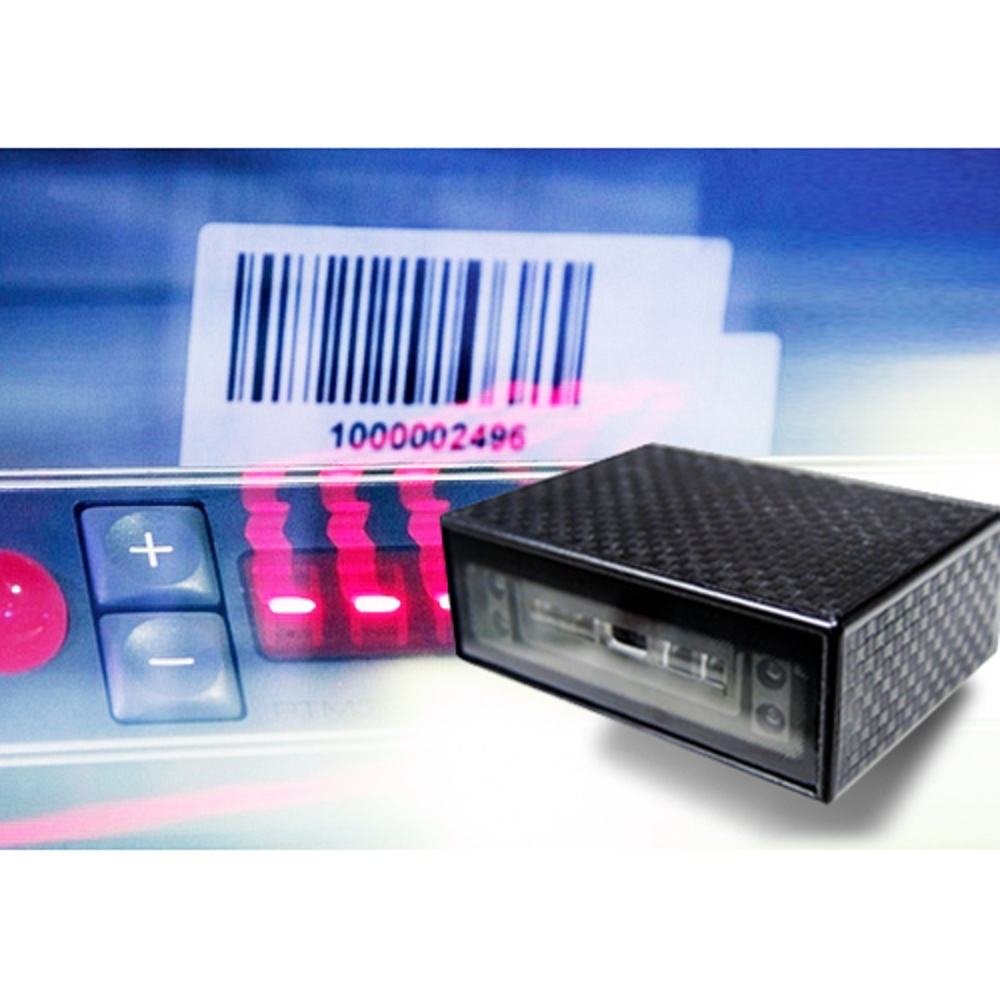

The auto-adaptive scanning parameters of AS601 linear fixed mount barcode scanner automatically optimizes the ambient light immunity of up to 70,000 lux and create an extraordinary extended working range for easy scanning of barcodes from near to far.
With flash memory, AS601’s field upgradability extends your products’ lifecycle and eliminates the cost incurred by complete system upgrade.
With Windows-based software application is also in place that allows user to configure and conduct testing on AS601 linear fixed mount barcode scanner with a much user-friendly interface, effectively shortening the time and effort it takes for user to configure the scanner.

Outstanding Performance and Industrial Protection
AS601 achieves outstanding scanning performance at 200 scans per second, capture any 1D barcodes. The IP55-rated housing of AS601 is designed to have dust and water resistance, and guarantees the best performance in a tough working environment. Its ruggedized housing design can withstand 1.5-meter direct drop to concrete. Safe, sharp aiming beam and fully conforms to the latest Photo-biological Safety Standard (IEC 62471).

Fixed mount barcode scanner with Auto-sensing Trigger

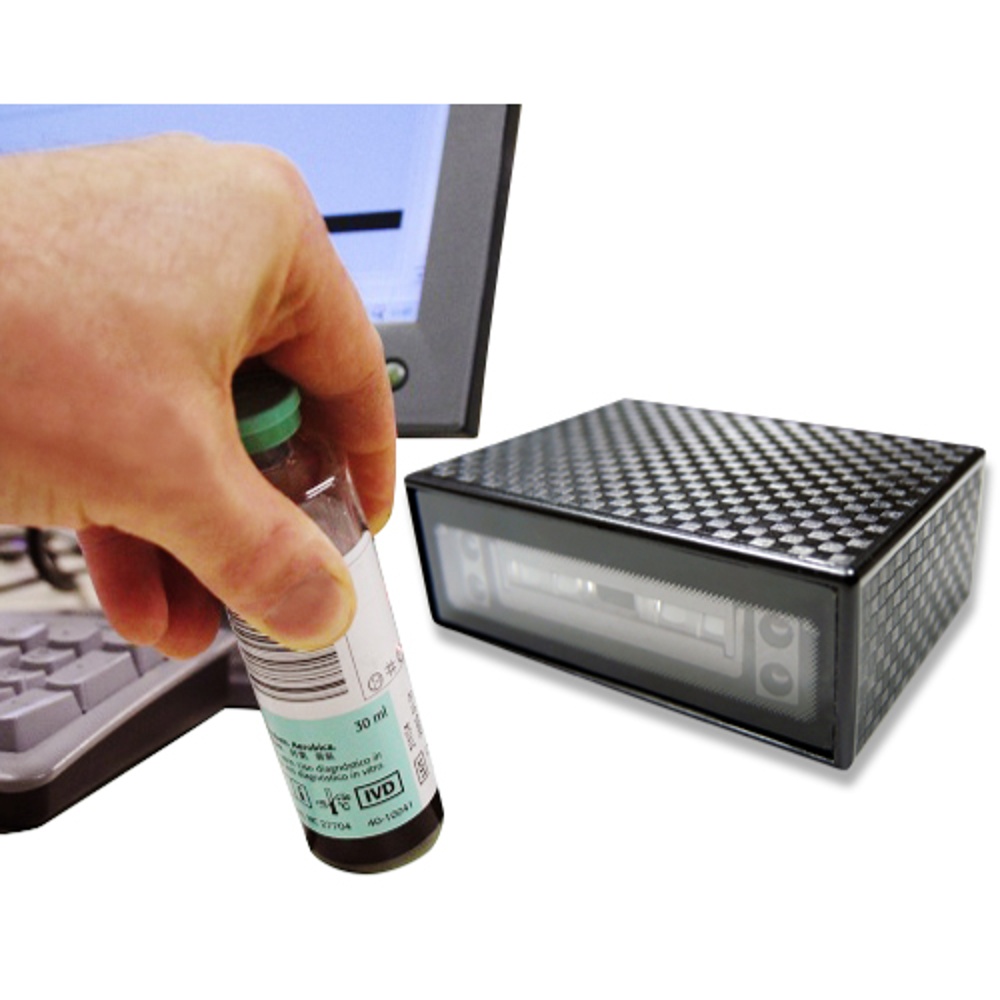

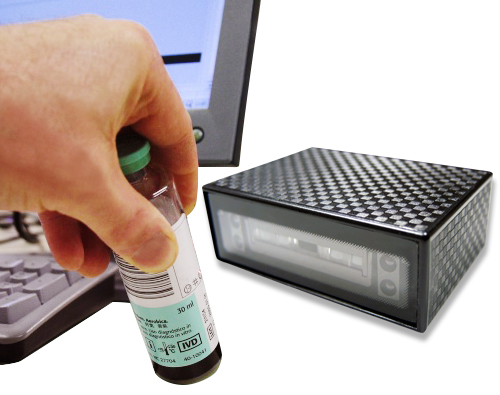

Using highly sensitive infrared sensor, AS601 linear fixed mount barcode scanner will turn on automatically when any object closes in on the scanner, providing great efficiency in every barcode scanning task. An user just simply places the barcode in front of the scanner, and a scan can be done automatically. Infrared sensor technology also means that the AS601 is capable of sensing and scanning barcode in complete dark environment.

Multiple Mounting Options

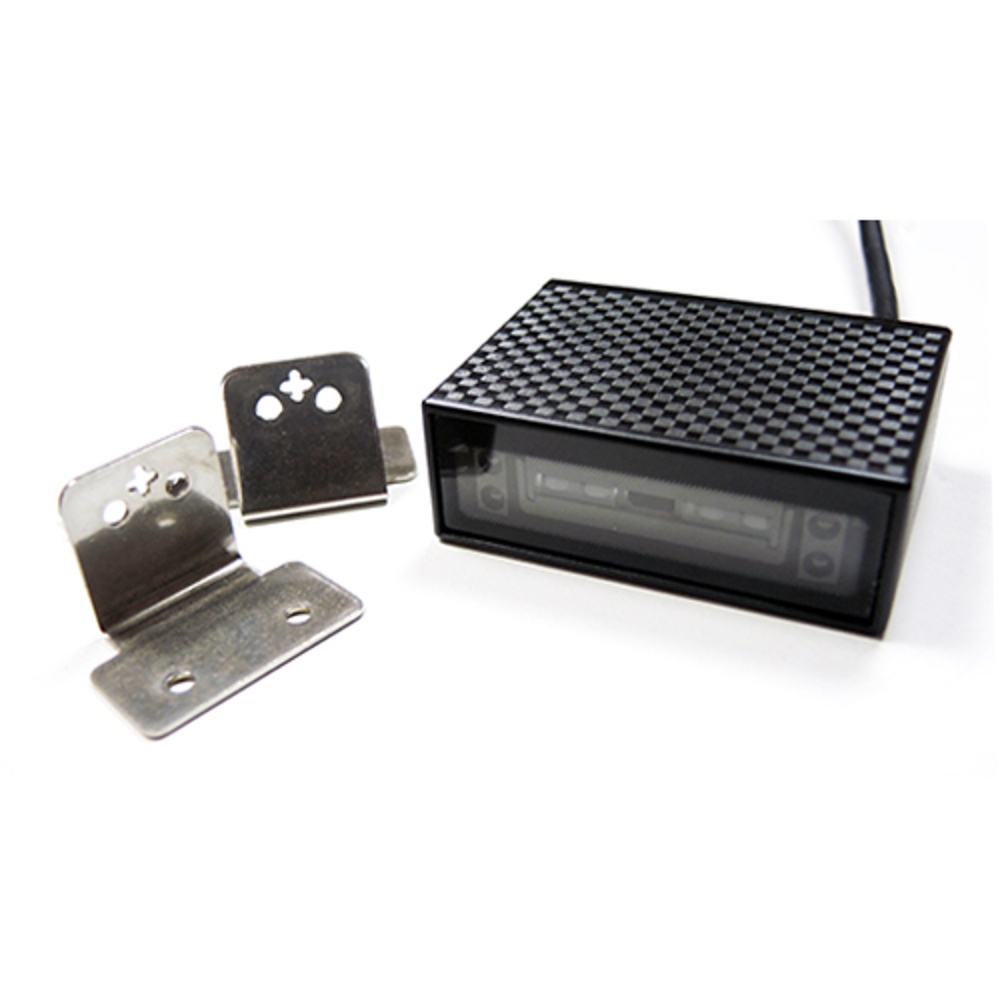

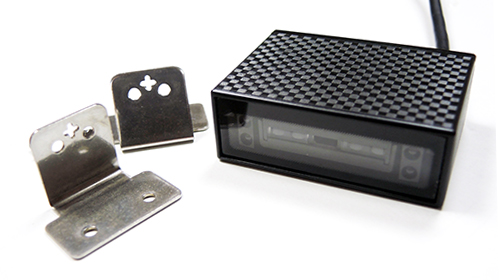

AS601 linear fixed mount barcode scanner comes with two mounting brackets (90-degree & 60-degree configurations) which allow the scanner to be mounted in straight, tilted, or right-angled direction, so as to fit into the most tightest space. These perfect companions offers a great solution to efficiently secure AS601 linear fixed mount barcode scanner, eliminating the need for equipment redesign or complicated wiring.

Future Proof
The field upgradable AS601 linear fixed mount barcode scanner (flash memory) future-proofs your investment and protects your peace in mind by allowing additional future requirements or performance enhancement to be fulfilled. Easy to upgrade via interface cable, AS601 linear fixed mount barcode scanner extends your products’ lifecycle and eliminates the cost incurred by complete system upgrade.

Ambient light Immunity
The auto-adaptive scanning parameters of AS601 linear fixed mount barcode scanner optimizes the ambient light immunity of up to 70,000 lux and create an extraordinary extended working range for easy scanning of barcodes from near to far. This feature helps customer complete barcode scanning task from indoor to outdoors applications, under any lighting condition.
Optical & Performance
Light Source 635nm visible red LED
Sensor Linear Image Sensor
Scan Rate 510 Scans/Sec
Resolution 3Mil/ 0.075mm
Scan Angle 40°
Print Contrast 30%
Width of Field 140mm (13Mil Code39)
D.O.F (@ 800 Lux)

Code39:
3 Mil : 59 ~ 100 mm
4 Mil : 47 ~ 122 mm
5 Mil : 45 ~ 156 mm
10 Mil: 27 ~ 352 mm
15 Mil: 40 ~ 519 mm

UPC/EAN:
13 Mil: 37 ~ 445 mm
Physical Characteristics
Dimension W56 x L41 x H20 mm
Weight 86g
Color Black
Material ABS (Housing), PC (Back Cover)
Connector USB Type A
Cable 90cm (Fixed Cable)
Trigger (1) Auto-sensing (2) Software Trigger
Indicator LED, Buzzer
Power
Operation Voltage 5 VDC ± 5%
Working Current < 200mA
Standby Current < 120mA
Connectivity
Interface/ Profile USB HID
USB VCP
User Environment
Operating Temperature -10 ~ 50˚C
Storage Temperature -20 ~ 65˚C
Humidity 0% ~ 95%RH (Non-condensing)
Drop Durability 1.5M
Sealing IP55
Ambient Light 70,000 Lux (Sunlight)
1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar
Regulatory
ESD Functional after 4KV contact, 8KV Air discharge
EMC FCC Part 15B Class B, CE EN55022/24
Safety Approval EN/IEC62471 (Exempt Group)
Environmental WEEE, RoHS 2.0
Description Notes Date Download
AS601 Quick Guide User Manual   Dec 28, 2014 Download Now
Utility   Nov 20, 2015 nextlink
AS601 Serial Command Manual   Nov 20, 2015 nextlink
AS601 FM3 VCP Driver  For the barcode scanner with firmware version started with 'FM3', firmware version is shown on product package Dec 28, AS nextlink
AS601 SM3 VCP Driver  (Most updated version of AS601), for the barcode scanner with firmware version started with 'SM3', firmware version is shown on product package. Dec 28, AS nextlink
AS601 BOE   Dec 28, 2014 Download Now
Product
Dimensions
  Dec 28, 2014 Download Now
60 Degree Bracket Accessory   Dec 28, 2014 Download Now
90 Degree Bracket Accessory   Dec 28, 2014 Download Now
Complete User Manual Full version of the barcode scanner's user manual. It may includes other barcode scanner model's setting content which it might not applied this particular model. Dec 28, 2014 Download Now
Manufacturer's Original Price: $225

Promotion Price

$175.00 each
+
Add to cart
If you are a reseller or distributor, please contact us for pricing by clicking here.
