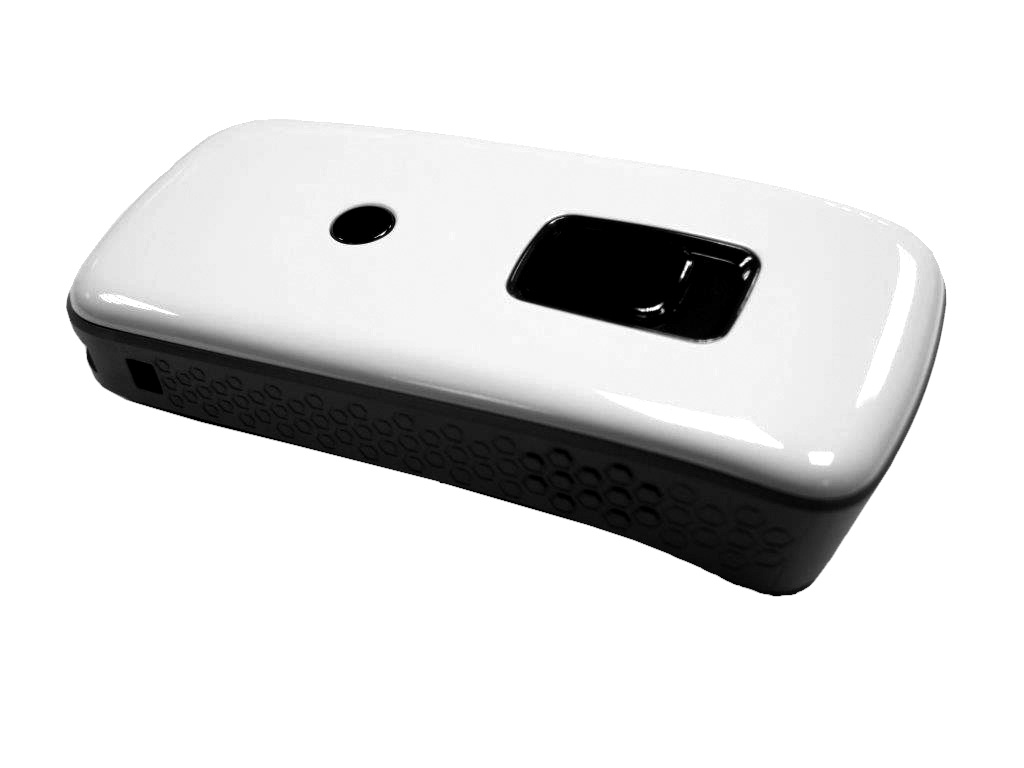

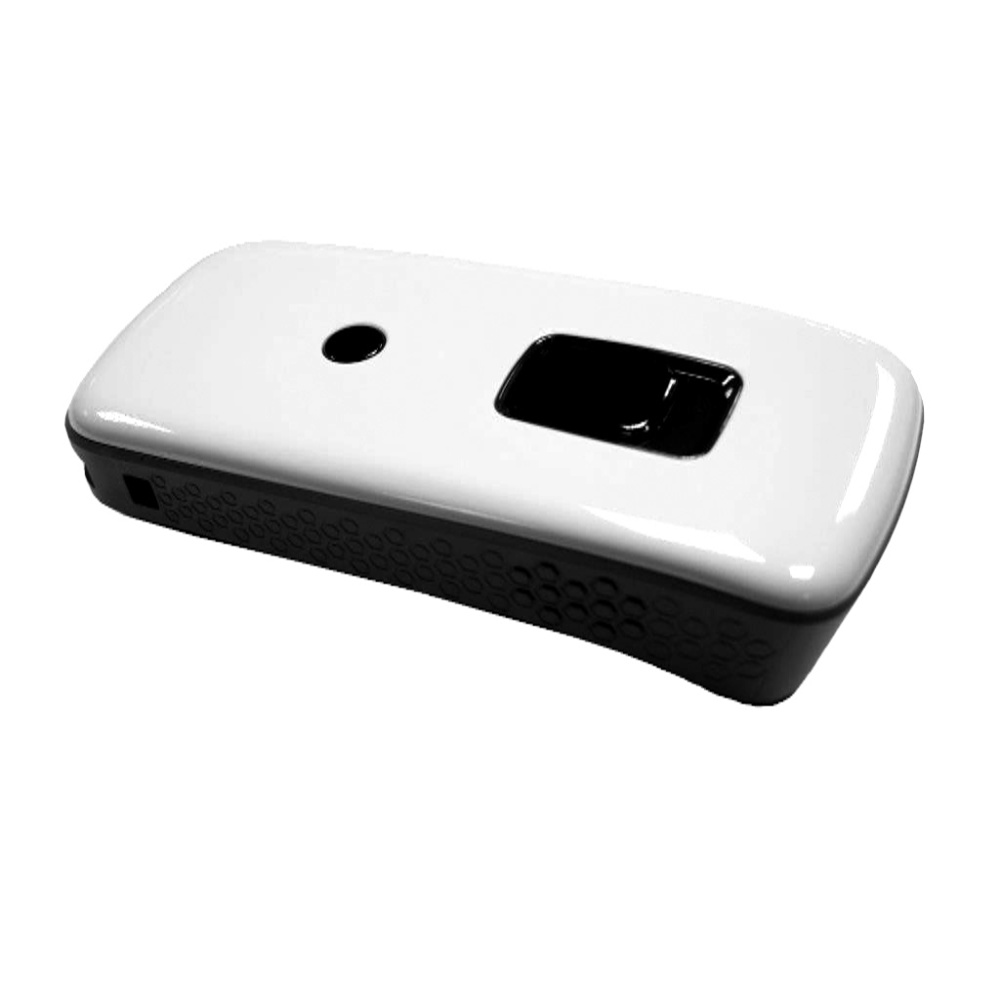

AS20 features the smallest pocket mobile UHF reader and one perfect accessory for mobile RFID application. AS20 Mobile UHF Reader is designed to lead the new trends of UHF and smartphone-based applications such as Access Control, Electronic Ticket, Membership Management, Asset Tracking, Equipment Inspection, UHF transaction and a variety of RFID applications.
Arkscan® AS20 features the smallest pocket mobile UHF reader and one perfect accessory for mobile RFID application. AS20 Mobile UHF Reader is designed to lead the new trends of UHF and smartphone-based applications such as Access Control, Electronic Ticket, Membership Management, Asset Tracking, Equipment Inspection, UHF transaction and a variety of RFID applications.
Outstanding Performance
AS20 Mobile UHF Reader delivers high-speed scanning and error-free decoding of HF or NFC tags and cards, it is fully compliant with EPC Class 1 Gen2 and ISO 18000-6C standards, RP901. AS20 Mobile UHF reader can make the most applications that RFID technology can provide.
Long Battery Life
AS20 Mobile UHF Reader is powered by 1100mAh battery which can deliver more than 6000 scans per full battery charge. AS20 Mobile UHF Reader offers ample battery power for the longest shift and ensures data collection is completed.
User Friendly
Integrates with a vibrating device that is programmable by a software utility. The reader has full variety of good read indication including audible, visual and vibrating method, especially in noisy and quiet environment that the vibrating indicator can be utilized. A must-have UHF reader for iPad and iPhone user, the barcode reader comes with the second iOS button to enable on-screen keyboard typing and barcode scanning at the same time without disconnecting the pairing.
Great compatibility
Supports any computer or mobile device with USB or Bluetooth® 2.1 (backward compatible) without any software installation (The scanner is not created by Bluetooth); AS20 UHF reader works with iPad®, iPhone®, Android®, Tablet, Windows®, PC, Laptop, Linux®, MacBook®, Mac® and any computer devices (All copyrights of brands belong to their respective holders).
AS20 Mobile UHF Reader delivers high-speed scanning and error-free decoding of HF or NFC tags and cards, it is fully compliant with EPC Class 1 Gen2 and ISO 18000-6C standards, RP901. AS20 Mobile UHF reader can make the most applications that RFID technology can provide.
Long Battery Life
AS20 Mobile UHF Reader is powered by 1100mAh battery which can deliver more than 6000 scans per full battery charge. AS20 Mobile UHF Reader offers ample battery power for the longest shift and ensures data collection is completed.
User Friendly
Integrates with a vibrating device that is programmable by a software utility. The reader has full variety of good read indication including audible, visual and vibrating method, especially in noisy and quiet environment that the vibrating indicator can be utilized. A must-have UHF reader for iPad and iPhone user, the barcode reader comes with the second iOS button to enable on-screen keyboard typing and barcode scanning at the same time without disconnecting the pairing.
Great compatibility
Supports any computer or mobile device with USB or Bluetooth® 2.1 (backward compatible) without any software installation (The scanner is not created by Bluetooth); AS20 UHF reader works with iPad®, iPhone®, Android®, Tablet, Windows®, PC, Laptop, Linux®, MacBook®, Mac® and any computer devices (All copyrights of brands belong to their respective holders).
| Performance | |
| Frequency
|
EU 868 MHz, US 959 MHz |
| Standard | EPC Global Class 1 Gen 2 ISO/IEC 18000-6C |
| Memory
|
2 MB |
| Read Mode | Multiple tag / Single tag mode |
| Reading Distance
|
up to 100 CM (Depends on RFID tag) |
| Physical Characteristics | |
| Dimension | L 109.3 x W 51.4 x H 28.1mm |
| Weight | 106g |
| Color | White |
| Material | PC |
| Cable | 1.5M (Micro USB Cable) |
| Trigger | Scan Button iOS Hotkey |
| Indicator | Buzzer, LED, Vibrator, Audible Tone |
| Power | |
| Operation Voltage | 3.7 VDC |
| Working Current | < 250mA |
| Standby Current | < 75mA |
| Idle Current | < 1mA |
| Battery | 3.7 V, 1100mAh, Lithium Battery |
| Number of Scan (per full charge) | 6000 Scans |
| Connectivity | |
| Radio | Bluetooth 2.1 + EDR |
| Range | 10m (line of sight) |
| Interface/ Profile | BT (SPP) BT (HID) USB (HID) USB (VCP) |
| User Environment | |
| Operating Temperature | -10~50°C |
| Storage Temperature | -20~60˚C |
| Humidity | 0%~95%RH (Non-condensing) |
| Drop Durability | 1.2M |
| Sealing | IP42 |
| Regulatory | |
| EMC | CE, FCC, BSMI, CCC |
| ESD | Functional after 4KV contact, 8KV Air discharge |
| Safety | RoHS 2.0, WEE |
| Description | Notes | Date | Download |
| AS10 Quick Guide User Manual | Quick guide | Dec 28, 2014 |  |
| SM3 VCP Driver | Driver to connect the RFID / NFC Utility tool via USB cable | Nov 20, 2015 | |
| RFID/NFC Utility 2.03 | For firmware 2.02, please check product label for firmware version | Aug 20, 2017 | |
| RFID/NFC Utility 1.03 | For firmware 1.14, please check product label for firmware version | Aug 20, 2017 | |
| AS10 User Manual | Full version user manual for AS10 RFID NFC reader. | Aug 20, 2017 | |
*In order to switch between different interfaces, such as BT-HID, BT-VCP, Memory, USB-HID, USB-VCP or Wireless Dongle, you need to install the SM3 VCP Driver, and RFID / NFC Utility tool to make the change.
In this video, we briefly go over how to easily pair your AS10 NFC RFID Reader or AS20 UHF RFID Reader to your smartphone or tablet. We over both iOS and Android operating systems.
In this video, we briefly go over how to easily pair your AS10 NFC RFID Reader or AS20 RFID Reader to your smartphone or tablet. We over both iOS and Android operating systems
Manufacturer's Original Price: $795
Promotion Price
$650.00 each
If you are a reseller or distributor, please contact us for pricing by clicking here.
